Mini Ball Valve FM

Size:1/8" to 1"(DN6 to DN25)
End Connection: Thread
Pressure: 1000WOG(PN63)
Maximum Temperature:-29°C to 180°C
Availability:
Quantity:

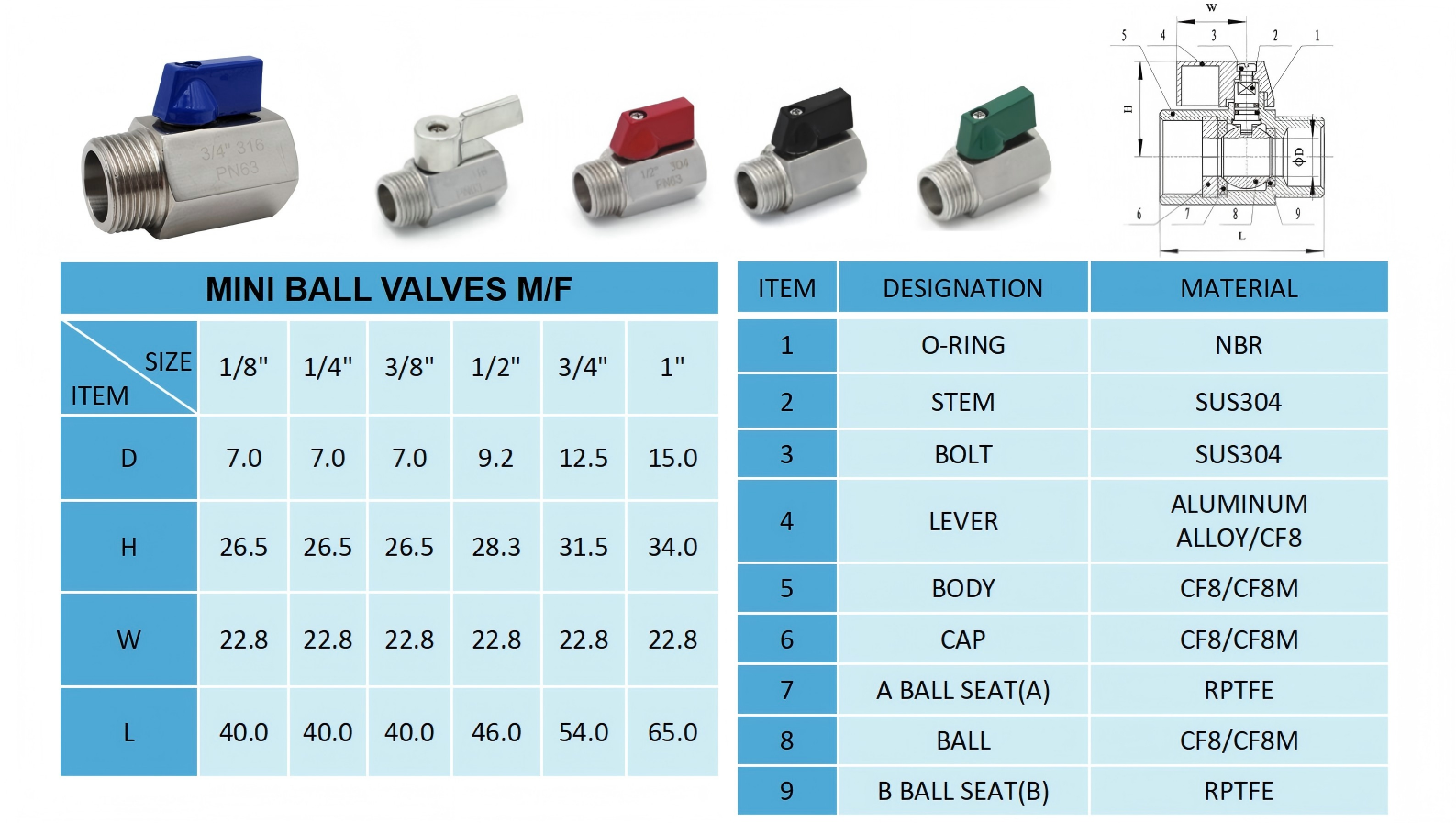

Mini Ball Valve FM


Product Specifications:

Product name: Stainless Steel Mini Ball Valve FM
Material: Stainless steel 304, 316, 304l, 316l, 1.4308,1.4408, CF8, CF8M, etc.
Size: 1/8" to 1"
DN6, DN8, DN15, DN20, DN25
Technology: Investment Casting
Surface threatment Polished,sand blast
Thread Standards: ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1
Casting Approved: AD2000-W0
Certificate: ASME、ISO9001:2008、CE、PED 97/23/EC、NSF、cUPC、ISO14001:2015、IS0 45001:2018,etc
Inspection Testing: API598、EN12266
Main products: Including threaded ball valves, flanged ball valves, butterfly valves,
check valves, gate valves, filters, etc.
Application: Many industries such as breweries, pipelines, ships, gas, oil, etc.
Sample Making: Available, Free sample with freight collect
Package: Plastic bag,bubble bag, cartons, wooden pallet,wooden box
OEM & ODM Services: Available, customize as your design,photo,drawing
Payment terms: 30% advance payment T/T, the balance is subject to bill of lading; letter of credit.
After-service: Replacement for free if there is any quality problem
Lead time: Usually no more than 30 days, according to your quantity
Delivery terms: Offer EXW, FOB, CFR, CIF, DDP delivery terms
