Product Specifications：

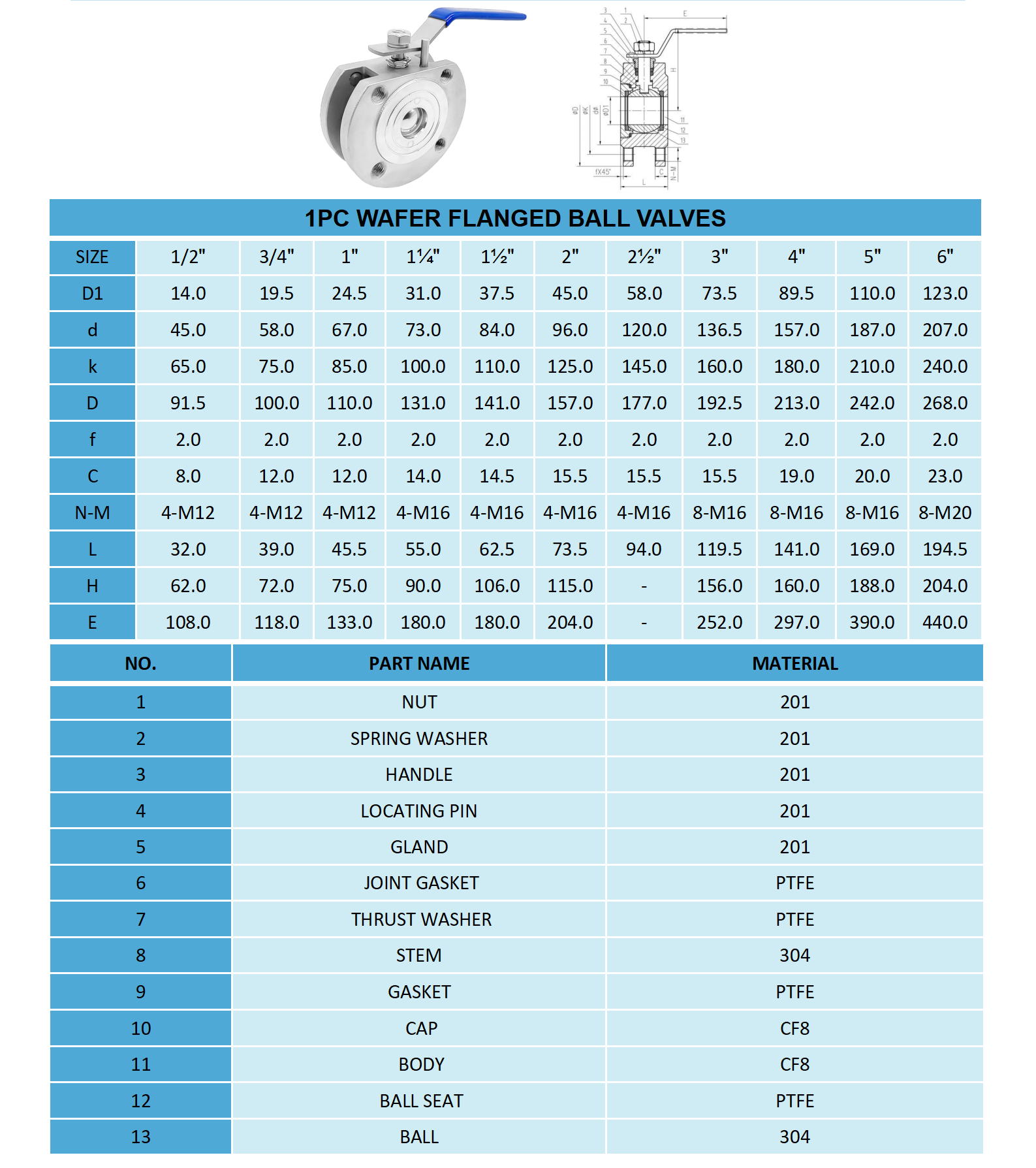

| Product name： | Stainless Steel 1PC Wafer Flanged Ball Valve |
| Material: | Stainless steel 304, 316, 304l, 316l, 1.4308,1.4408, CF8, CF8M, etc. |
| Size: | 1/2" to 6" |
| DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100,DN125,DN150 | |
| Technology: | Investment Casting |
| Surface threatment | Polished,sand blast |
| Design Standards: | ASME B16.34;DIN3357;EN12516-1;GB/T12237;API608 |
| Wall Thickness Standard: | ANSI B16.34;EN12516-1 |
| Flange Standards: | ASME B16.5;DIN1092;GB/T9113;HG20592;JIS B2238 |
| Casting Approved: | AD2000-W0 |
| Certificate： | ASME、ISO9001:2008、CE、PED 97/23/EC、NSF、cUPC、ISO14001:2015、IS0 45001:2018,etc |
| Inspection Testing: | API598、EN12266 |
| Main products： | Including threaded ball valves, flanged ball valves, butterfly valves, check valves, gate valves, filters, etc. |
| Application: | Many industries such as breweries, pipelines, ships, gas, oil, etc. |
| Sample Making： | Available, Free sample with freight collect |
| Package： | Plastic bag,bubble bag, cartons, wooden pallet,wooden box |
| OEM & ODM Services： | Available, customize as your design,photo,drawing |
| Payment terms： | 30% advance payment T/T, the balance is subject to bill of lading; letter of credit. |
| After-service： | Replacement for free if there is any quality problem |
| Lead time: | Usually no more than 30 days, according to your quantity |
| Delivery terms: | Offer EXW, FOB, CFR, CIF, DDP delivery terms |
Product Specifications：
| Product name： | Stainless Steel 1PC Wafer Flanged Ball Valve |
| Material: | Stainless steel 304, 316, 304l, 316l, 1.4308,1.4408, CF8, CF8M, etc. |
| Size: | 1/2" to 6" |
| DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100,DN125,DN150 | |
| Technology: | Investment Casting |
| Surface threatment | Polished,sand blast |
| Design Standards: | ASME B16.34;DIN3357;EN12516-1;GB/T12237;API608 |
| Wall Thickness Standard: | ANSI B16.34;EN12516-1 |
| Flange Standards: | ASME B16.5;DIN1092;GB/T9113;HG20592;JIS B2238 |
| Casting Approved: | AD2000-W0 |
| Certificate： | ASME、ISO9001:2008、CE、PED 97/23/EC、NSF、cUPC、ISO14001:2015、IS0 45001:2018,etc |
| Inspection Testing: | API598、EN12266 |
| Main products： | Including threaded ball valves, flanged ball valves, butterfly valves, check valves, gate valves, filters, etc. |
| Application: | Many industries such as breweries, pipelines, ships, gas, oil, etc. |
| Sample Making： | Available, Free sample with freight collect |
| Package： | Plastic bag,bubble bag, cartons, wooden pallet,wooden box |
| OEM & ODM Services： | Available, customize as your design,photo,drawing |
| Payment terms： | 30% advance payment T/T, the balance is subject to bill of lading; letter of credit. |
| After-service： | Replacement for free if there is any quality problem |
| Lead time: | Usually no more than 30 days, according to your quantity |
| Delivery terms: | Offer EXW, FOB, CFR, CIF, DDP delivery terms |
