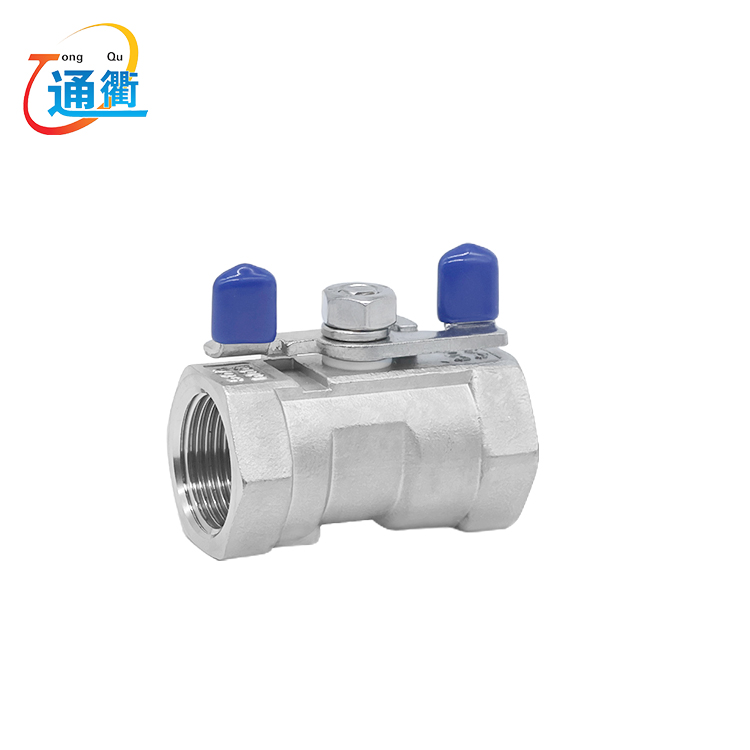

ball valve 316 stainless steel
Description：
The One Piece Ball valve as the name suggests is made out of one body piece, unlike the 2 and 3 pieces. A one-piece ball valve has a body and end connections formed from a single piece of material.
Product Specifications：
Material: | Stainless steel ANSI 304, 316, 304L,316L,1.4308, 1.4408, CF8, CF8M |
Size: | 1/8” to 4" (DN6-DN100) |
Thread type: | NPT, BSP, BSPT, etc. |
Thread Standards: | ASME B1.20.1 , BS21.0 , DIN2999/259 , ISO228-1 , JIS B 0203 , ISO7/1 |
Pressure: | 1000PSI/PN63 |
Technology: | Investment precision casting, CNC machine |
Pattern: | Full port design, Reduced port, and Locking device available |
Application: | Suitable for Water, Oil, Gas etc |
| Inspection Testing: | API598, EN12266（100% individually tested ） |
Note: | OEM and Customized service can be provided |
Advantages：
Low cost： The simplicity of the one-piece body design tends to make their cost lower than the other versions.
No leakage： This construction presents a comparatively reduced number of opportunities for leakage.
Tight seals： ensure a long-lasting seal after many years of corrosion resistance
Application：
Water | Oil | Gas |
| Chemical Processing | Pharmaceutical Industry | HVAC Systems |
| Marine and Coastal Applications | Fire Protection Systems | Other pipe systems |
Certificate：
Package：
