Description：

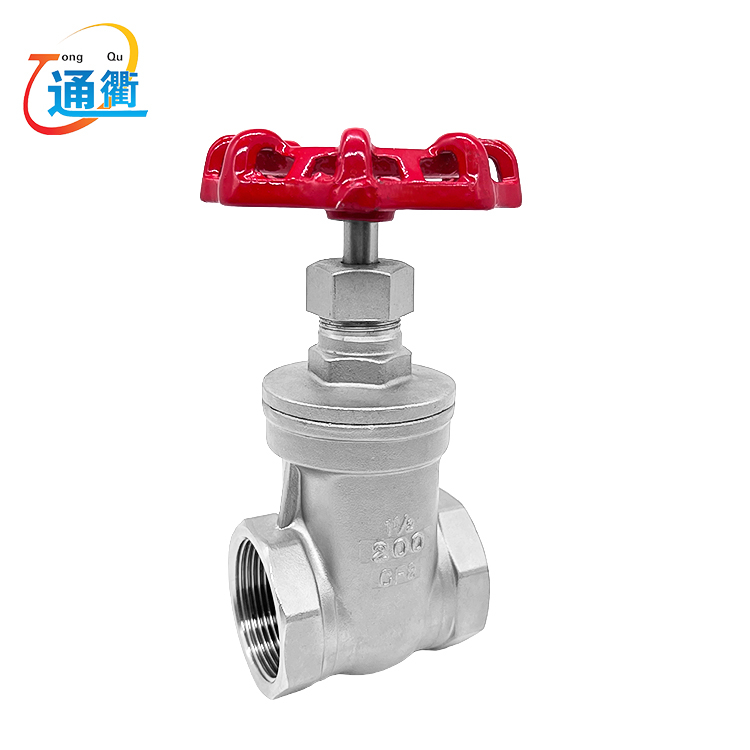

A gate valve, also known as a sluice valve, is a valve that opens by lifting a barrier (gate) out of the path of the fluid. Gate valves require very little space along the pipe axis and hardly restrict the flow of fluid when the gate is fully opened.

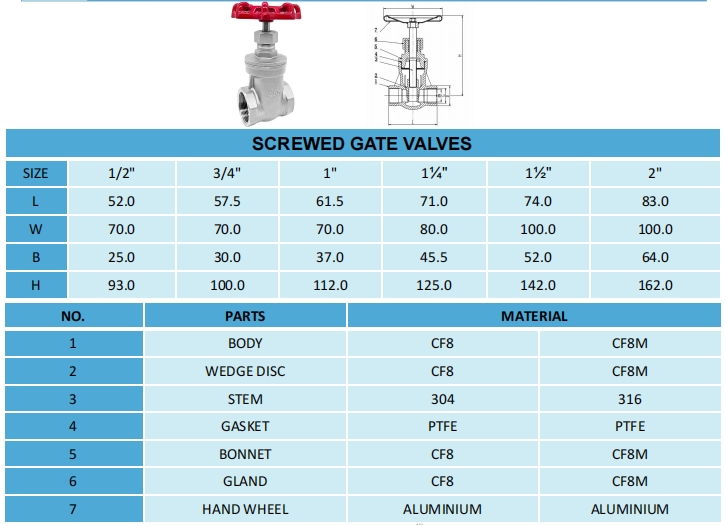

Product Specifications：
| Process： | Investment Casting |
| Material: | Stainless Steel 304, 316, 1.4308, 1.4408, CF8, CF8M |
| Connection： | NPT, BSP, BSPT, etc. |
| Thread: | ASME B1.20.1 , BS21.0 , DIN2999/259 , ISO228-1 , JIS B 0203 , ISO7/1 |
| Size: | 1/8" to 4" (DN6 to DN100) |
| Pressure: | 1000PSI/1000WOG |
| Working Temperature: | -4°F – 300°F |
| Medium： | Water, Oil, Gas etc |
| Inspection Testing: | API598, EN12266（100% individually tested ） |
Application：
A gate valve is commonly used for isolation duties within potable water, wastewater, sewage and fire main applications.
Application：
Water | Oil | Gas |
| Chemical Processing | Pharmaceutical Industry | HVAC Systems |
| Marine and Coastal Applications | Fire Protection Systems | Other pipe systems |
Certificate：
Package：
