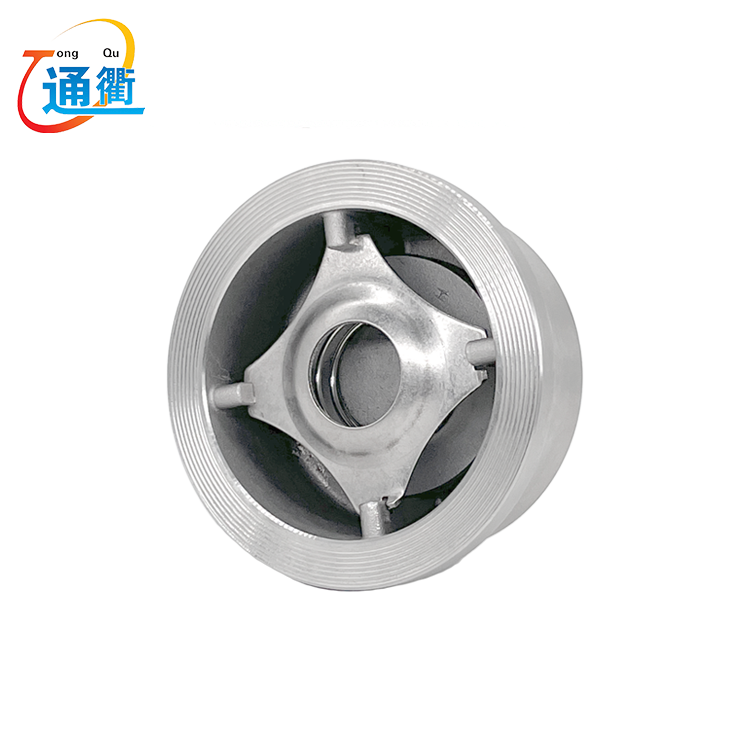

Stainless Steel Disc Check Valve：
The Stainless Steel Disc Check Valve is our wafer end and disc check valve. AISI 316 stainless steel body, disc and spring. are devices used to maintain a one-way flow of liquid in a pipe.
Product Specifications：
| Process： | Investment Casting |
| Material: | Stainless Steel 304, 316, 1.4308, 1.4408, CF8, CF8M |
| Connection： | Flange connection according to EN 1092 PN10/16/25/40 and ANSI 150/300 |
| Size: | 1/2"-4"(DN15-DN100) |
| Throughput Direction: | Straight |
| Pressure: | PN40 |
| Working Temperature: | -20℃～150℃ |
| Medium： | Water, oil, gas and acids |
| Inspection Testing: | API598, EN12266（100% individually tested ） |
Application：
Water | Oil | Gas |
| Chemical Processing | Pharmaceutical Industry | HVAC Systems |
| Marine and Coastal Applications | Fire Protection Systems | Other pipe systems |
Certificate：
Package：
Stainless Steel Disc Check Valve：
The Stainless Steel Disc Check Valve is our wafer end and disc check valve. AISI 316 stainless steel body, disc and spring. are devices used to maintain a one-way flow of liquid in a pipe.
Product Specifications：
| Process： | Investment Casting |
| Material: | Stainless Steel 304, 316, 1.4308, 1.4408, CF8, CF8M |
| Connection： | Flange connection according to EN 1092 PN10/16/25/40 and ANSI 150/300 |
| Size: | 1/2"-4"(DN15-DN100) |
| Throughput Direction: | Straight |
| Pressure: | PN40 |
| Working Temperature: | -20℃～150℃ |
| Medium： | Water, oil, gas and acids |
| Inspection Testing: | API598, EN12266（100% individually tested ） |
Application：
Water | Oil | Gas |
| Chemical Processing | Pharmaceutical Industry | HVAC Systems |
| Marine and Coastal Applications | Fire Protection Systems | Other pipe systems |
Certificate：
Package：
