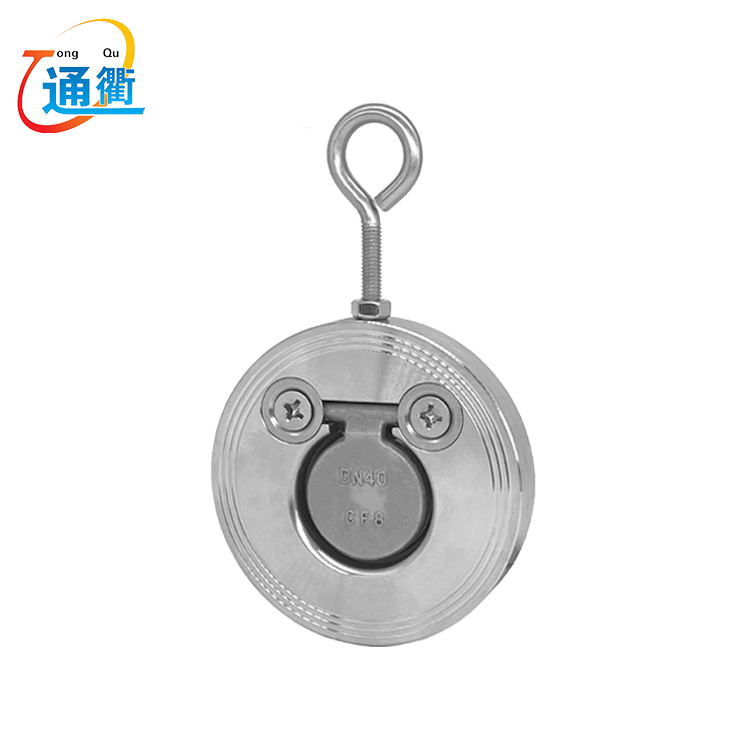

Stainless Steel Wafer Check Valve：
Wafer Swing Check Valves are check valves that provide one-way flow and provide sealing with the help of the soft gasket inside. It closes with the incoming fluid against the flow direction and opens with the force applied by the incoming fluid. Its use in horizontal lines gives more positive results.
Product Specifications：
| Process： | Investment Casting |
| Material: | Stainless Steel 304, 316, 1.4308, 1.4408, CF8, CF8M |
| Connection： | for mounting between flanges acc. to DIN PN10/16 |
| Size: | DN40-DN600 |
Seat Sealing: | NBR |
| Working Temperature: | -40℃～100℃ |
| Medium： | Water, oil, gas and acids |
| Inspection Testing: | API598, EN12266（100% individually tested ） |
Application：
Steam | Hot Water | Cold Water |
Power & Heat Engineering | Pressurized Air | Industrial Technologies |
Fluids without Acidity or Alkalinity Properties | ||
Certificate：
Package：
